Automated Quality Control: Replacing Human Visual Inspection with Machine Vision

Another customer complaint. Another defect that somehow made it past three stages of visual inspection. As a quality director, this scenario is more than just a frustration; it’s a direct threat to your company’s reputation and bottom line. You’ve likely tried the standard solutions: adding more inspectors, implementing new training programs, or improving the lighting at inspection stations. Yet, the defects persist, seemingly at random, eroding margins and customer trust with each slipped-through flaw.

The conventional wisdom is to simply automate, to replace the human eye with a camera. But this approach often misses the fundamental problem. What if the issue isn’t the inspectors themselves, but the very act of *looking*? What if the human eye, for all its marvel, is simply the wrong tool for the repetitive, high-stakes task of industrial quality control? The truth is that human perception is subjective, variable, and prone to systematic, predictable failures.

This article will not just argue for automation; it will dissect the scientific reasons why manual inspection is a flawed system. We will move beyond the simplistic “cameras are better” argument to provide a strategic framework for implementing machine vision correctly. We will explore how to choose the right technology for the right problem, from lighting and cameras to the software that powers them. We’ll also uncover the common pitfalls that cause automated systems to fail and reveal the true, often hidden, costs of scrap that justify the investment. It’s time to stop trusting eyes and start trusting data.

This comprehensive guide breaks down the core components of transitioning from fallible human sight to objective, data-driven automated quality control. Explore the structured sections below to build a robust strategy for your operations.

Why manual inspectors miss 20% of defects after 4 hours on shift?

The core problem with manual visual inspection isn’t a lack of training or effort; it’s a matter of human biology. While exact figures vary by industry and task complexity, research shows that error rates for manual inspection can range from 15% to 30%. This isn’t a reflection on your workforce’s dedication. It’s the inevitable result of a well-documented psychological phenomenon known as vigilance decrement.

Vigilance decrement is the decline in performance over time when a person is tasked with monitoring for an infrequent or subtle signal. Studies show that under most conditions, this decline becomes significant within the first 15-20 minutes of a continuous monitoring task. Your inspectors are not just “getting tired”; their brains are actively reallocating resources away from the monotonous task. This leads to two specific types of failure:

• Inattentional Blindness: This is where an inspector can be looking directly at a defect but fail to “see” it because their attention is momentarily diverted, even for a split second.
• Change Blindness: This occurs with gradual changes, such as a slow degradation in print quality or a progressive color shift. The brain adapts to the slow change and fails to register it as a defect.

These are not personal failings; they are hard-wired cognitive limitations. Relying on human visual inspection for critical quality control is building your process on a foundation that is guaranteed to fail at a predictable rate. The only way to truly eliminate this source of error is to replace the subjective, variable human brain with an objective, tireless system.

How to choose the right lighting to make surface scratches visible to cameras?

A common failure point in early machine vision projects is assuming a high-resolution camera is all that’s needed. In reality, the camera is only as good as the light it receives. For many defects, especially subtle surface flaws like scratches, dents, or texture variations, lighting is more important than the camera itself. The goal isn’t to make the part look good; it’s to make the defect look obvious.

This is achieved by moving away from generic, flat “bright-field” illumination and employing specialized lighting techniques that manipulate how light interacts with the surface. For example, low-angle or “dark-field” lighting is exceptionally effective at revealing surface scratches.

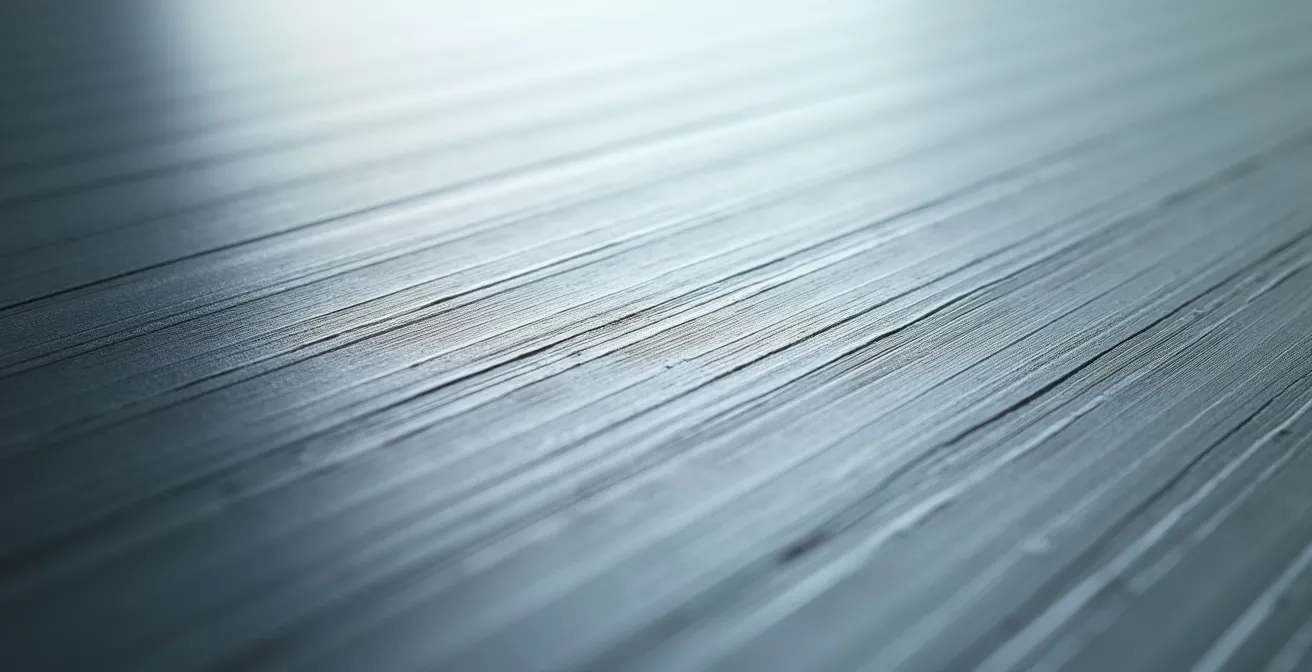

As seen in the image, the light strikes the surface at a very low angle. On a smooth, defect-free surface, the light reflects away from the camera lens. However, when the light hits the edge of a scratch or pit, it scatters upwards into the camera, making the defect shine brightly against a dark background. This technique transforms an almost invisible flaw into a high-contrast signal that is easy for software to detect. Choosing the right technique is critical for success.

The optimal lighting setup depends entirely on the material of your part and the specific type of defect you need to find. This table provides a starting point for selecting the right approach.

Line-scan vs Area-scan cameras: which is needed for high-speed webs?

Once your lighting is optimized, you must select the right camera. While standard “area-scan” cameras (which capture a full frame image at once, like a smartphone) are suitable for stationary parts, they are often the wrong choice for products manufactured in a continuous process, such as paper, film, metal, or fabric webs. At high speeds, area-scan cameras introduce motion blur and image tearing, making reliable inspection impossible.

For these applications, a “line-scan” camera is the industry standard. Instead of a 2D sensor array, a line-scan camera has a single row of pixels. It captures one line of the product at a time, building a complete 2D image as the material moves underneath it. This method has several distinct advantages for web inspection. As the Intelgic Engineering Team notes in their guide on Machine Vision Systems for Manufacturing:

Line Scan Cameras are best suited for high-speed materials like steel sheets, labels, or transparent films in continuous motion.

– Intelgic Engineering Team, Machine Vision Systems for Manufacturing

This approach eliminates motion blur entirely, as the image acquisition is synchronized with the product’s movement via an encoder. It also allows for extremely high resolutions in the direction of travel and makes it more cost-effective to inspect very wide webs, which would otherwise require multiple, carefully stitched area-scan cameras.

The choice is not arbitrary; it’s dictated by the physics of your production line. Understanding the fundamental differences is key to specifying a system that will actually work at your required line speed.

The programming error that causes your system to scrap good parts

You’ve selected the perfect lighting and camera. The system is installed. But now you face a new, insidious problem: the system is generating false positives, flagging perfectly good parts as defects and needlessly increasing your scrap rate. This is a common and costly failure mode, often rooted in a subtle AI programming error known as overfitting.

Overfitting occurs when a machine learning model is trained on a dataset that is too limited or not representative enough of real-world production variations. In many high-quality manufacturing environments, defects are rare. This creates a paradox: your process is so good that you don’t have enough defect samples to properly train an AI to find them. The model learns the “perfect” state of your product so rigidly that any minor, acceptable variation—a slight shift in texture, a dust particle, a reflection—is incorrectly classified as a defect.

The solution, as highlighted in a study on AI for quality control, is to stop relying solely on physical samples. By creating synthetic defect data—computer-generated images of your product with a wide array of simulated flaws—you can build a vastly more robust training dataset. This allows the AI model to learn the difference between a critical flaw and an acceptable cosmetic variation. Without this step, your state-of-the-art vision system becomes a “dumb” tool that scraps good parts and drives up costs, a problem the original human inspectors may not have had.

How to store image data for traceability without filling your servers?

A high-speed, high-resolution vision system can generate a terrifying amount of data—terabytes per day in some cases. The default approach of saving every single image for traceability is an IT nightmare waiting to happen, leading to overflowing servers and crippling network traffic. However, with a smart strategy, storing only defect images and metadata can reduce storage requirements by over 99%.

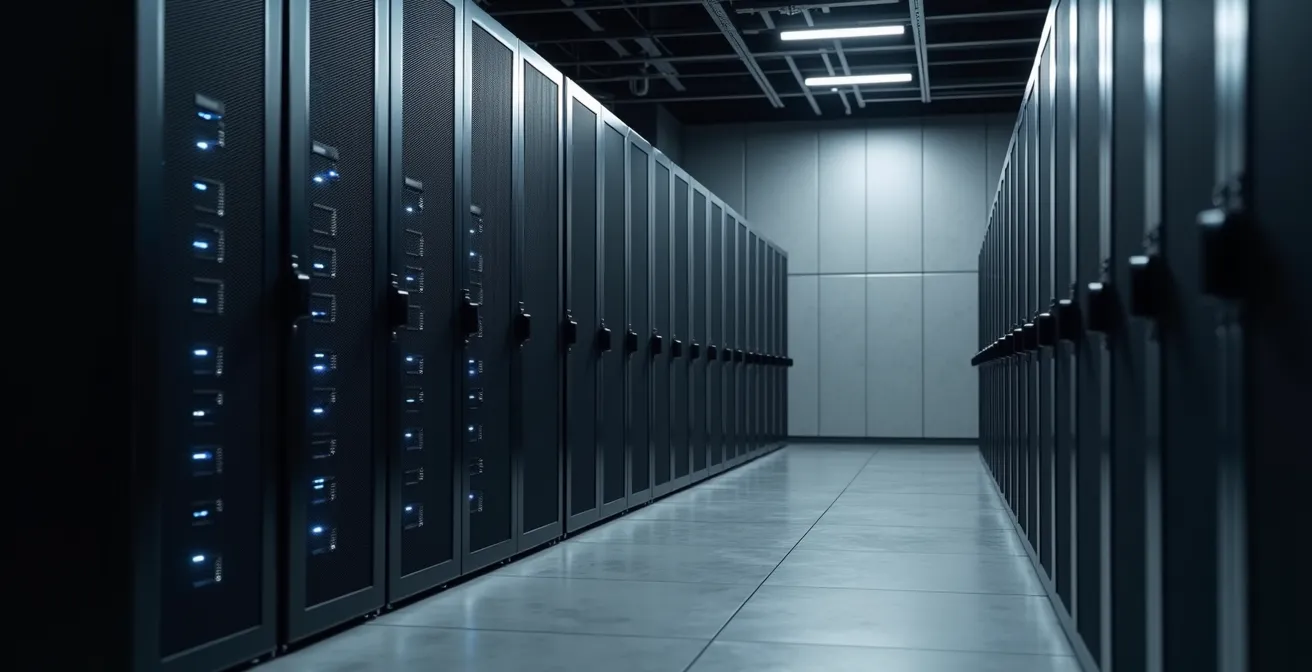

The solution is to move away from brute-force data logging and implement a tiered storage and edge processing strategy. Instead of sending every image to a central server, the analysis happens locally on an “edge” computing device located right on the production line. This device makes the pass/fail decision in real-time.

This approach allows for a much more intelligent data management policy. The system can be configured to only save the high-resolution images of actual defects for later review. For good parts, it might only keep a small, compressed thumbnail and a log file with metadata (e.g., timestamp, product ID, inspection results). This provides full traceability without the massive storage overhead.

A typical tiered storage strategy for a vision system would follow these steps:

• Store all raw images locally on the edge device for a short period (e.g., 72 hours) for immediate troubleshooting.
• Automatically move only the images flagged as defects to long-term cloud or central server storage.
• For all “pass” images, retain only the essential metadata and a compressed thumbnail.
• Implement data compression algorithms optimized for industrial images to further reduce file sizes.
• Establish automated purging policies based on your industry’s regulatory and traceability requirements.

Why human planners cannot mathematically optimise 500+ SKU combinations?

The data generated by a machine vision system has value far beyond the quality department. It provides a stream of objective, real-time information that can revolutionize production planning. Human planners, even the most experienced, rely on spreadsheets, tribal knowledge, and heuristics to create production schedules. This works for a small number of products, but it breaks down completely in the face of modern manufacturing complexity.

The reason is a mathematical principle called combinatorial explosion. As the number of SKUs, production lines, and sequencing constraints increases, the number of possible schedules grows exponentially. A case study on production planning highlights the scale of the problem: for 500 SKUs across 10 production lines, the number of possible schedules can exceed 10^1000. It is not just difficult for a human to find the optimal schedule; it is mathematically impossible.

This is where vision system data becomes a powerful input for AI-driven planning software. The system doesn’t just know *that* a defect occurred; it knows *when* and *where* it occurred. This creates a powerful feedback loop. As a research team studying AI in manufacturing puts it:

Vision data provides critical constraints for optimization algorithms. The system knows that ‘running SKU B after SKU A results in a 3% higher defect rate’, a subtle correlation a human planner would never detect.

– Manufacturing Systems Research Team, AI-Powered Production Optimization Study

By feeding this data into an optimization engine, the system can automatically generate production schedules that minimize changeover times, reduce defect rates, and maximize overall equipment effectiveness (OEE). It transforms the vision system from a simple quality gate into a strategic source of operational intelligence.

Why your scrap rate is actually costing double what the spreadsheet says?

When calculating the ROI for a new quality system, most managers start with the material cost of scrap. If your scrap rate is 2%, you calculate the value of that 2% of material and labor. This calculation is dangerously misleading. The true cost of scrap is far higher, buried in operational inefficiencies known as the “Hidden Factory.”

The Hidden Factory is all the work, resources, and capacity consumed by non-value-added activities related to poor quality: rework, re-inspection, troubleshooting, and managing scrap itself. These costs don’t appear as a neat line item on a P&L statement, but they are a massive drain on profitability. It is not uncommon for organizations to spend between 15-20% of their sales revenue on quality-related costs, with some reaching as high as 40% of total operations.

Consider the true cost of a single scrapped part. It’s not just the raw material. It also includes:

• Embedded Resources: The energy consumed to produce it, the wear on the tooling, the lubricants and other consumables used.
• Allocated Overhead: The portion of your factory’s fixed costs (rent, utilities, indirect labor) that were allocated to the production time of that specific part.
• Opportunity Cost: This is the most significant hidden cost. The machine time, labor, and resources used to create that scrapped part could have been used to create a good, sellable part. In a capacity-constrained facility, every scrapped part represents lost revenue.

When you account for the Hidden Factory, the true cost of scrap is often 2x to 4x what appears on the spreadsheet. This reframes the investment in automated quality control not as a cost center, but as a direct and powerful driver of profitability by shutting down the Hidden Factory for good.

Boosting Operational Yield: How to Reduce Material Scrap by 10% in Manufacturing?

The ultimate goal of an automated quality control system is not simply to act as a better gatekeeper, catching defects before they reach the customer. Its true strategic value lies in transforming it into a real-time process control sensor that helps you prevent defects from being created in the first place. This is the path to boosting operational yield and achieving significant reductions in material scrap.

By correlating defect data—what the defect is and where it is located—with real-time production parameters, you can uncover the root causes of quality issues. For example, a system might identify that a specific type of defect on a plastic part only appears when the injection molding machine’s barrel temperature fluctuates by more than 2 degrees. With this knowledge, you can tighten the process control on the molder, eliminating the defect at its source.

This proactive, data-driven approach is the foundation of predictive quality. As demonstrated in a case study at a major consumer goods manufacturer, a computer vision system was implemented to pull faulty toothbrushes from an assembly line. The success of this proof-of-concept showed the potential for massive ROI if rolled out at scale, not just by catching defects, but by providing the data needed to improve the upstream process. The focus shifts from “what did we scrap?” to “what can we adjust to avoid scrap tomorrow?”

The transition from subjective inspection to objective data is not just an upgrade; it’s a fundamental shift in manufacturing philosophy. The journey begins not with a massive capital investment, but with a change in mindset. Start by auditing your most critical inspection point and questioning not the inspector, but the inherent fallibility of the process itself. By trusting data over eyes, you can finally shut down the hidden factory and move towards a future of zero-defect manufacturing.
